WB-10N (N) SERIES
Electronic Micrometer
WB-10N (N) SERIES
Entry-Level 1 Channel Electric Micrometer
- Exclusive Use for 1 Channel
- Highly Cost Effective, Compact Size
- Panel mount, special stand mount
- Excellent visibility of pass/fail indication with 3 colors
- 0.1㎛ 0.5㎛ 1㎛ 10㎛ Resolution
- RS232c communication, input/output support
Rated Performance
| WB-10N | |
| Features | Standard |
| Screen | 3-Color 6-FND |
| Resolution | 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ |
| Input Channel | 1Ch |
| Length Information (W x D x H) | 96 x 48 x 126 (mm) |
| Input Power | DC24V 0.5A |
| Communication | RS232C |
| Communication Command | – |
| Input Output | 2-Input, 3-Output |
| Data Storage | – |
| Probe Sensor | IP series (DEVA Analog Type) |
| WB-10N | |
| Features | Standard |
| Screen | 3-Color 6-FND |
| Resolution | 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ |
| Input Channel | 1Ch |
| Length Information (W x D x H) |
96 x 48 x 126 (mm) |
| Input Power | DC24V 0.5A |
| Communication | RS232C |
| Communication Command | – |
| Input Output | 2-Input, 3-Output |
| Data Storage | – |
| Probe Sensor | IP series (DEVA Analog Type) |

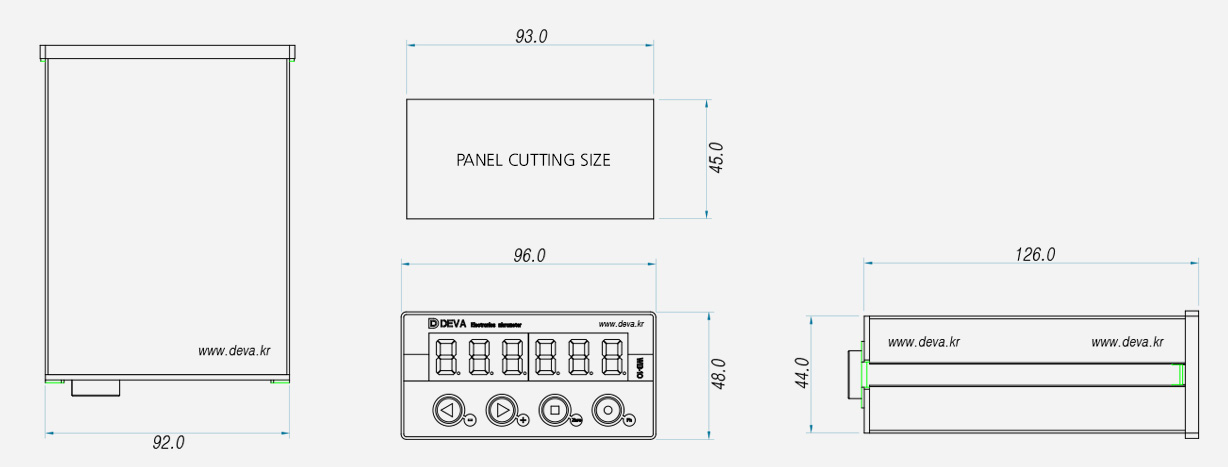

Length Information
Name and Explanation for Each Part
Application Examples
