WB-10R (R) SERIES
Electronic Micrometer
WB-10R (R) SERIES
Entry-Level 1 Channel (RUN-OUT) Electric Micrometer
- Exclusive Use for 1 Channel
- Highly Cost Effective, Compact Size
- Panel mount, special stand mount
- Excellent visibility of pass/fail indication with 3 colors
- 0.1㎛ 0.5㎛ 1㎛ 10㎛ Resolution
- RS232c communication, input/output support
- RUN OUT Function
– PEAK HOLD (Max)
– RUN OUT (M-n)
Rated Performance
| WB-10R | |
| Features | RUN-OUT, PEAK HOLD Measurement |
| Screen | 3-Color 6-FND |
| Resolution | 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ |
| Input Channel | 1Ch |
| Length Information (W x D x H) | 96 x 48 x 126 (mm) |
| Input Power | DC24V 0.5A |
| Communication | RS232C |
| Communication Command | – |
| Input Output | 2-Input, 3-Output |
| Data Storage | – |
| Probe Sensor | IP series (DEVA Analog Type) |
| WB-10R | |
| Features | RUN-OUT, PEAK HOLD Measurement |
| Screen | 3-Color 6-FND |
| Resolution | 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ |
| Input Channel | 1Ch |
| Length Information (W x D x H) |
96 x 48 x 126 (mm) |
| Input Power | DC24V 0.5A |
| Communication | RS232C |
| Communication Command | – |
| Input Output | 2-Input, 3-Output |
| Data Storage | – |
| Probe Sensor | IP series (DEVA Analog Type) |
Length Information

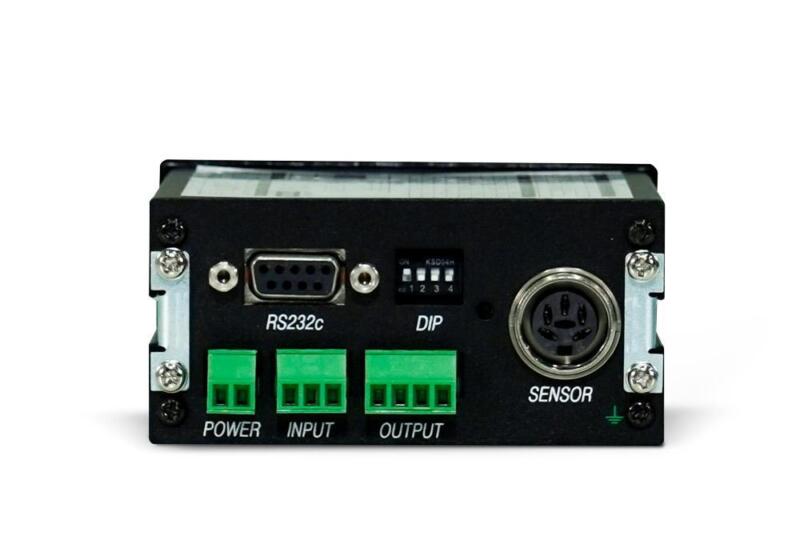

Name and Explanation for Each Part
Application Examples
