EA-200N (A) SERIES
Air Micrometer
EA-200N (A) SERIES
Column type 2-channel air micrometer
- Specialized in inner diameter, outer diameter measurements
- LCD & LED Multi Display
- 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ Resolution
- RS232c communication, input/output support
- Model (BANK) support
- Excellent visibility with 3 colors
– OK : Green
– NG : Red
– 공차 : Orange - Channel calculation function support
– A-B, (A+B)/2, (A-B)/2
Rated Performance
| EA-200N | |
| Features | Standard |
| Screen | 2.4″ GLCD |
| Resolution | 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ |
| Input Channel | 2Ch |
| Length Information (W x D x H) | 96 x 380 x 100 (mm) |
| Input Power | 24VDC 0.5A |
| Communication | RS232C |
| Communication Command | – |
| Input Output | 5-Input / 8-Output |
| Data Storage | – |
| Probe Sensor | Air Gauge |
| EA-200N | |
| Features | Standard |
| Screen | 2.4″ GLCD |
| Resolution | 0.1㎛ 0.5㎛ 1㎛ 5㎛ 10㎛ |
| Input Channel | 2Ch |
| Length Information (W x D x H) |
96 x 380 x 100 (mm) |
| Input Power | 24VDC 0.5A |
| Communication | RS232C |
| Communication Command | – |
| Input Output | 5-Input / 8-Output |
| Data Storage | – |
| Probe Sensor | Air Gauge |
Length Information

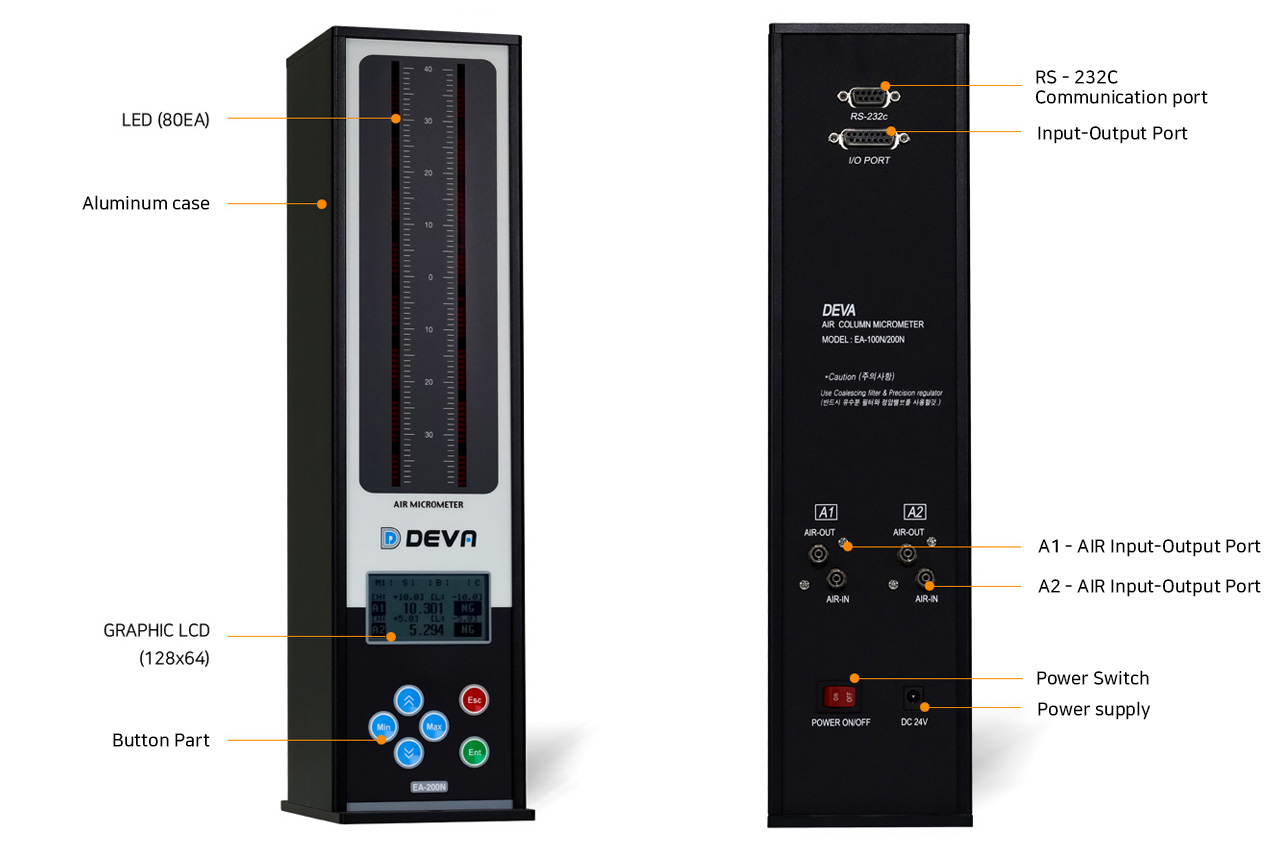

Name and Explanation for Each Part
Application Examples
